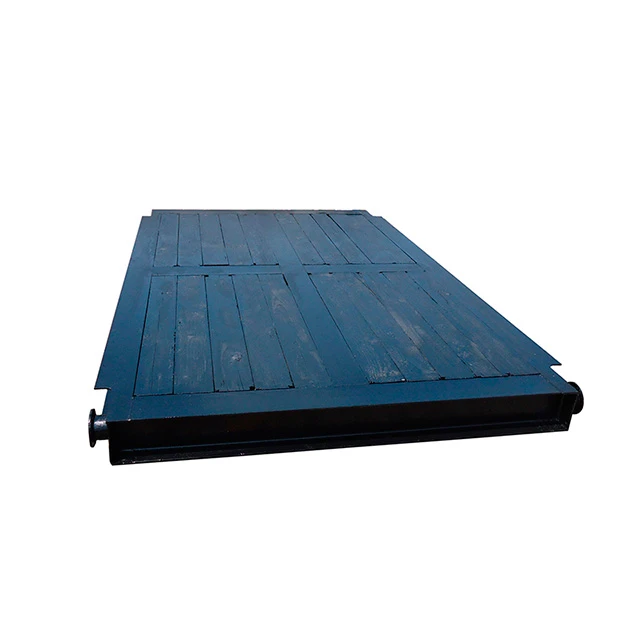

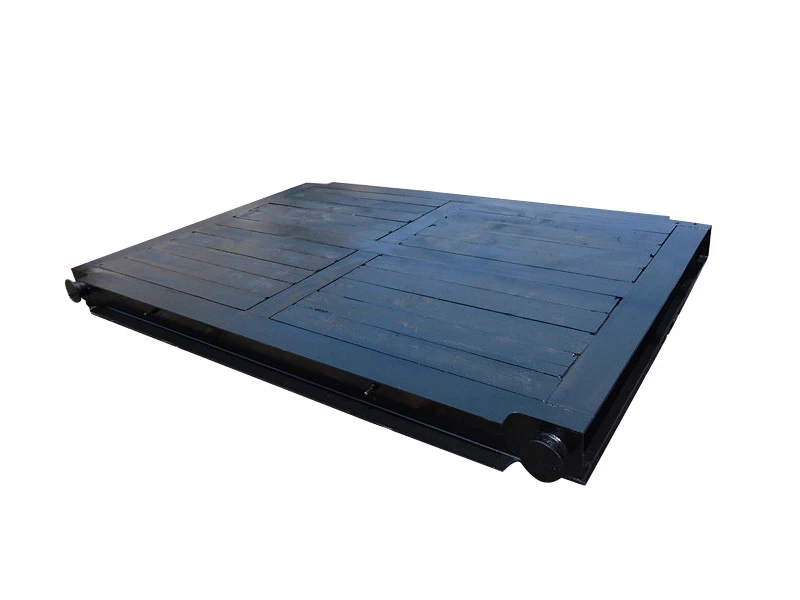

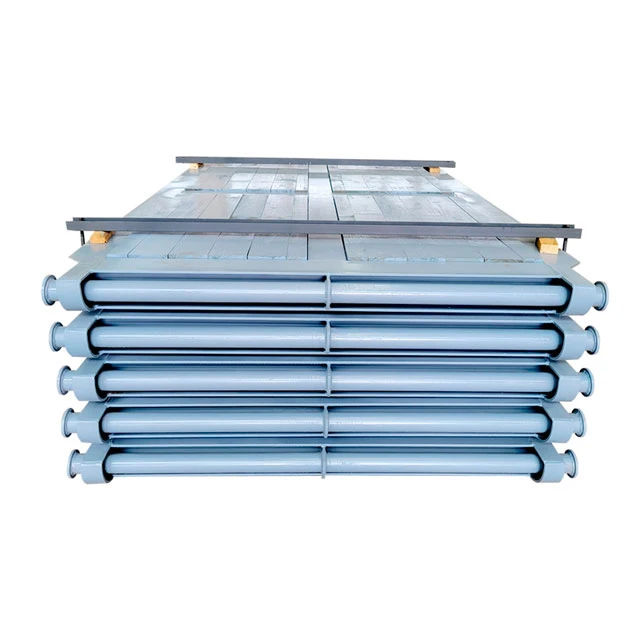

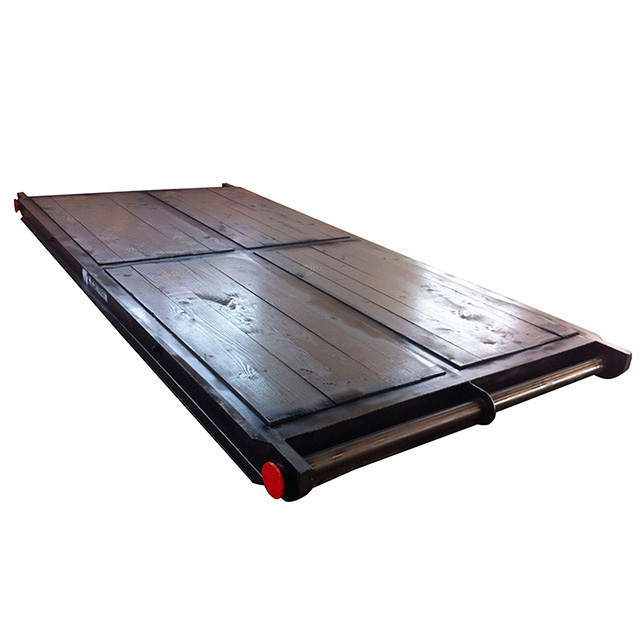

Oil Drilling Rig Mat

HGM series oil drilling mat is a new rig mat developed by HL Solid Control according to the needs of the well site. The rig mat replaces the traditional concrete foundation, which greatly reduces the drilling cost and improves the economy. Benefit, not only saves land, but also improves on-site management level.

Rig Mat Parameters

Model	Length（mm）	Width（mm）	Height（mm）
HGM204	2000	2000	200
HGM205	2500	2000	200
HGM203	3000	1000	200
HGM206	3000	2000	200
HGM209	3000	3000	200
HGM208	4000	2000	200
HGM210	4000	2500	200
HGM212	4000	3000	200
HGM216	4000	4000	200
HGM210	5000	2000	200
HGM215	5000	3000	200

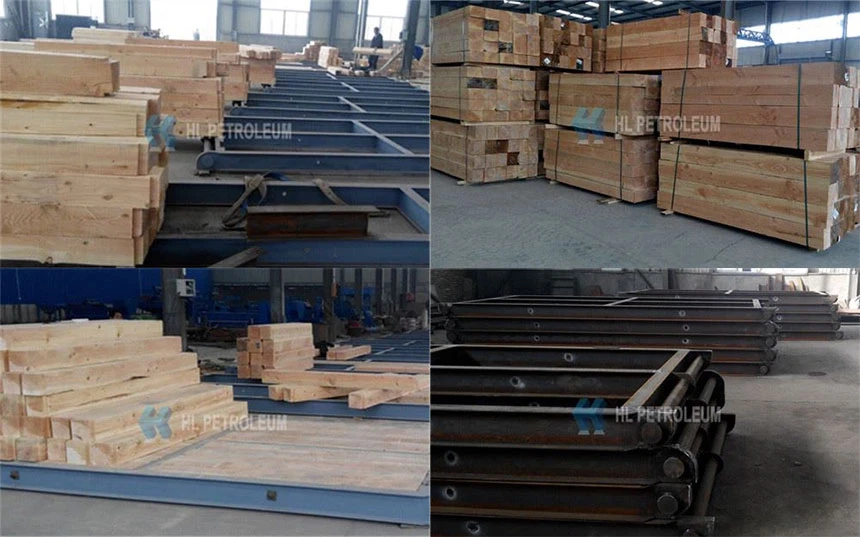

Rig Mat Processing Material Display

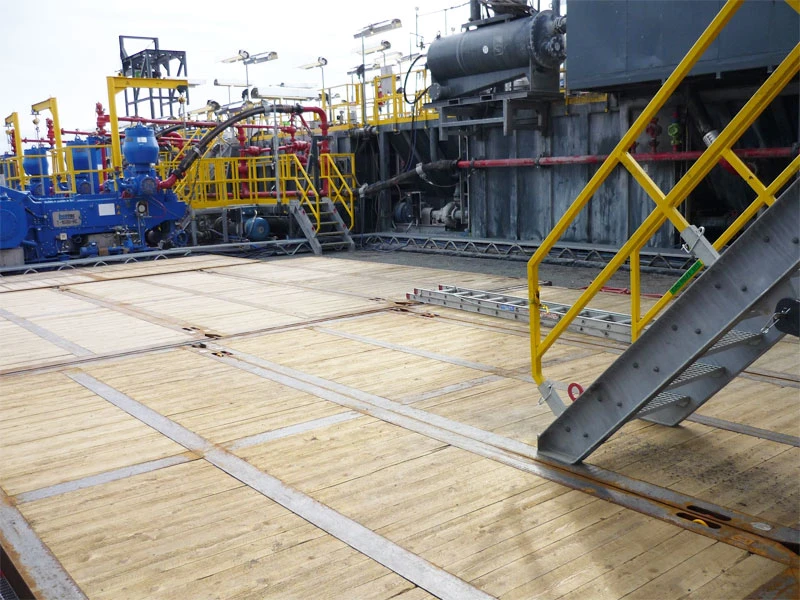

Oilfield Rig Mats Usage

Oil drilling rig mat is suitable for ZJ20, ZJ30, ZJ40, ZJ50, ZJ70 and other types of drilling rigs in the plains, plateaus, deserts, hills, beaches, swamps and other areas where the drilling depth is 1000-7000m.

Oilfield Rig Mats Features

The oil drilling rig mat has high strength, strong carrying capacity, good interchangeability, convenient transportation, low cost, convenient and quick installation, strong shock absorption, no dry cracking, no fear of water, corrosion resistance, no deformation, long service life, easy recovery and storage, etc. advantage.
